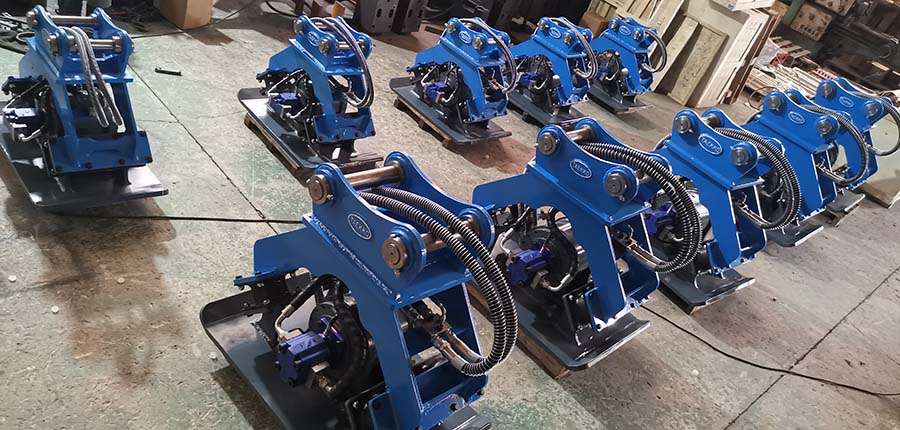

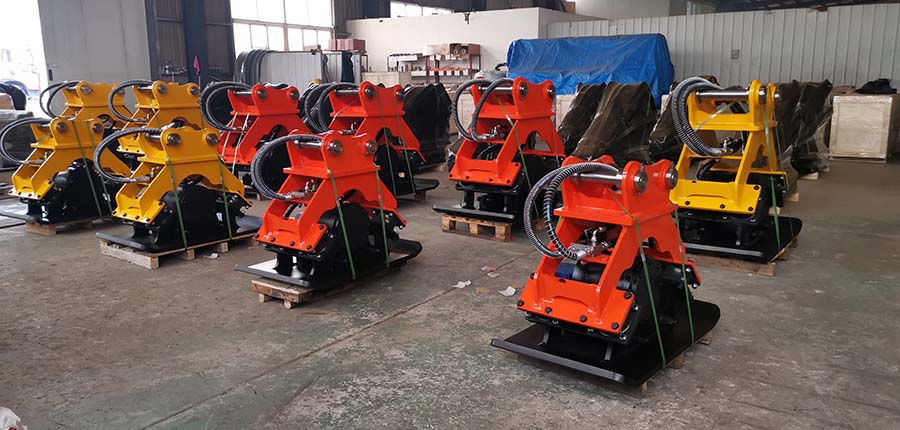

compactor

  • Products Detail



FEATURES

?Longer lifetime of damper

?Specially designed 45° inclined vibration-proof rubber minimizes shock power

?No pressure adjustment due to a high pressure generating motor

?High quality hydraulic motor drives the drum assembly to provide large amplitude with giant vibration.

?Alllicable to any position，such as horizon compaction，step compaction,bridge abutment,the trench pit compaction,sub grade compaction,the corner turning point,backfill compacted,concrete pavement patching compacted,tube side compaction etc.DLK hydraulic compactor can also be used for pulling piles and broken when necessary.


項目/型號 Item/Model 單位 Unit TKC02 TKC04 TKC06 TKC08 TKC10
適配挖掘機 Carrier Ton 2~3 4~9 10~16 17~23 23~30
打擊力 Impact Power Ton 2  4  6.5  10  10
最大震動次數 Maximum Vibration Frequency R/Min 2000  2000  2000  2000  2000
驅動油量 Oil Flow L/Min 25~40 45~75 85~105 120~170 120~170
驅動壓力 Pressure Kg/CM2 100~130 100~130 100~130 150~200 150~200
重量 Weight Kg 110  360  620  940  980
打擊面積 Bottom Measurement L*W,Mm 650*470 740*550 820*700 1100*900 1100*900
總高度 Height Mm 600  760  920  1060  1100
總寬度 Width Mm 410  550  700  900  900
