當(dāng)前位置：首頁>> >> Multi Crusher
<>

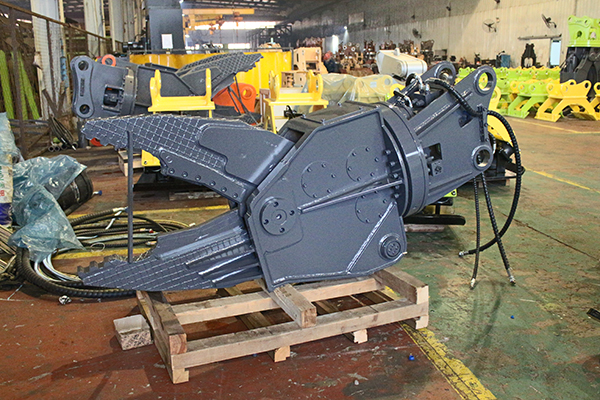

multi crusher

  • Products Detail

   Product Feature

? Applied to demolishing all kinds of reinforced concrete building, infrastructure bridge, and disassembling waste vehicles.

   ? Lighter and stronger structure: high tensile special steel plate.

   ? Large bore dual cylinders: balanced movement, strong power and excellent durability.

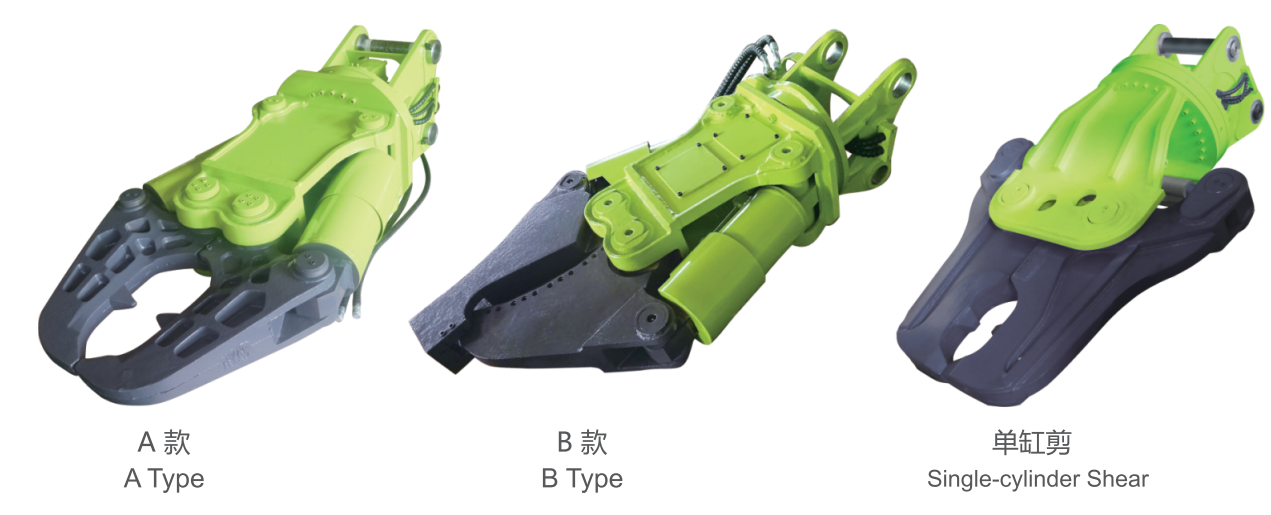

   ? Interchangeable jaw: crusher, pulverizer, shear.

   ? Single pin design: optimized angle for shearing and continuous shearing force.

   ? Speed up valve: fast cycle time.

   ? Full 360° hydraulic rotation motor equipped with dual relief valve.


小型液壓剪 高空液壓剪
項目/型號 Item/Model 單位 Unit  TKMS10  TKMS20  TKMS40 TK80V TK180V TK280V TK380V
適用挖掘機 Suitable Excavator ton 0.8-1.5 15-30 4-9 6-10 12-18 20-30 26-35
重量 Weight Kg 135 210  400  360  1280  1600 2000
開口 Opening mm 290 350  440  390  650  730 810
刀片長度 Blacde Length mm 100 100  120  100  150  180 180
高度 Height mm 1000 1055  1330  1280  1890  2010 2120
寬度 Width mm 660 690  770  850  1285  1350 1500
粉碎力 Crushing Force ton 20 22.5  50  20  80  100 120
剪切力 Cutting Force ton 22 26  55  50  165  210 260
驅(qū)動壓力 Driving Pressure bar 180 210 260 250 300 300 300
驅(qū)動流量 Driving Flow lpm ﹣ ﹣ ﹣ 180 230 240 240
周期                              張開 Ppen sec ﹣ ﹣ ﹣ 2.1 2.9 2.9 2.9
Cycle Timt                     閉合 Close sec ﹣ ﹣ ﹣ 2.7 2.7 2.7 2.7


multi crusher



multi crusher
