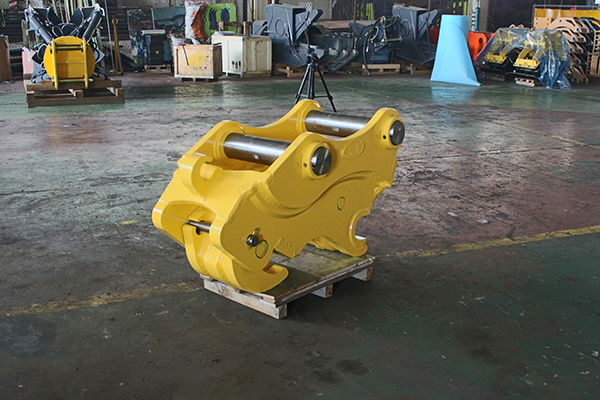

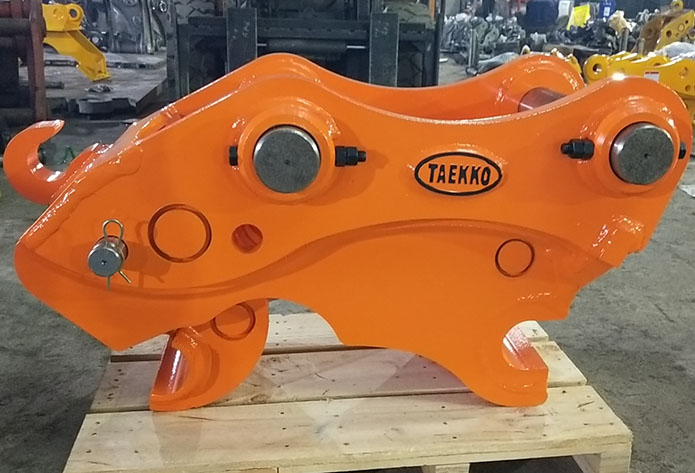

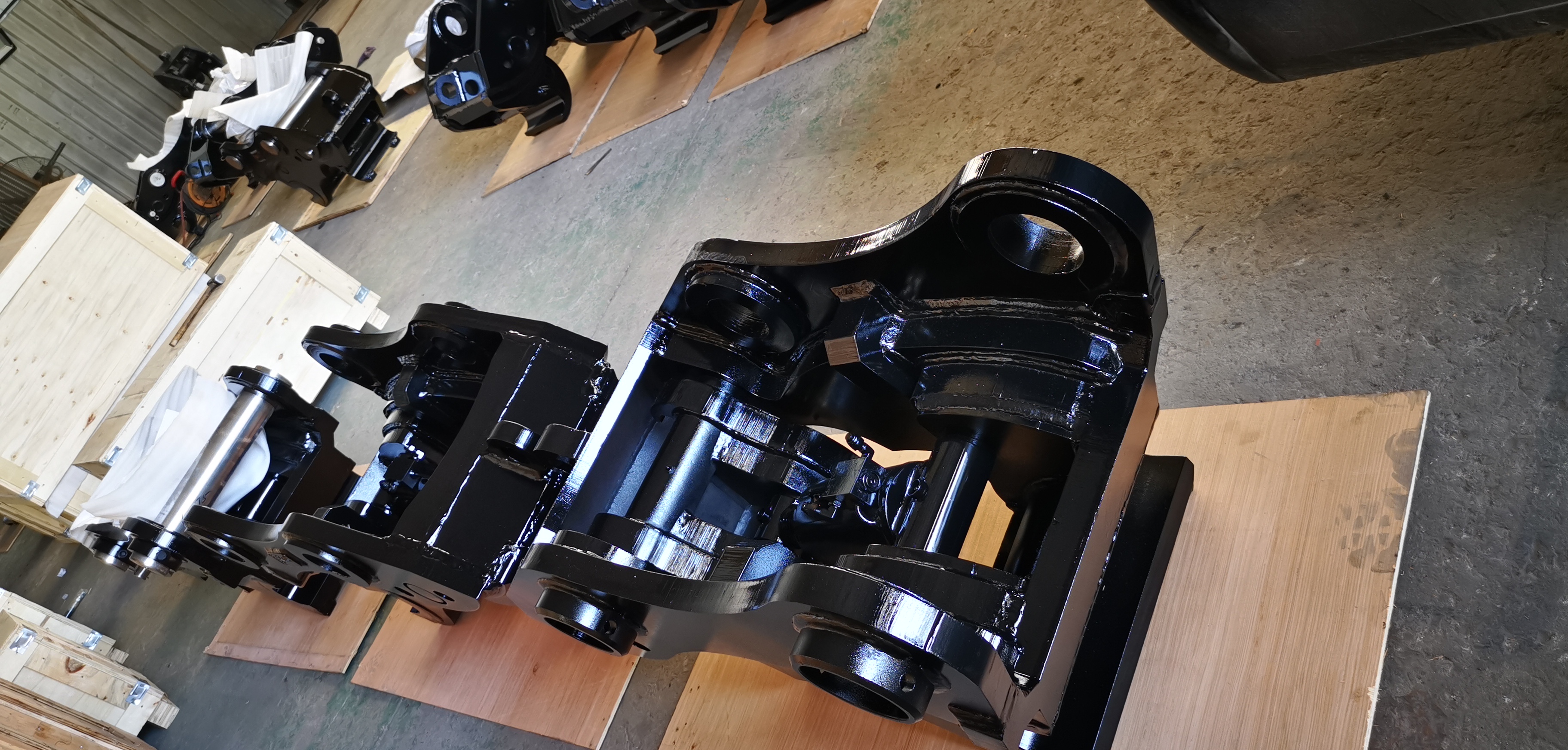

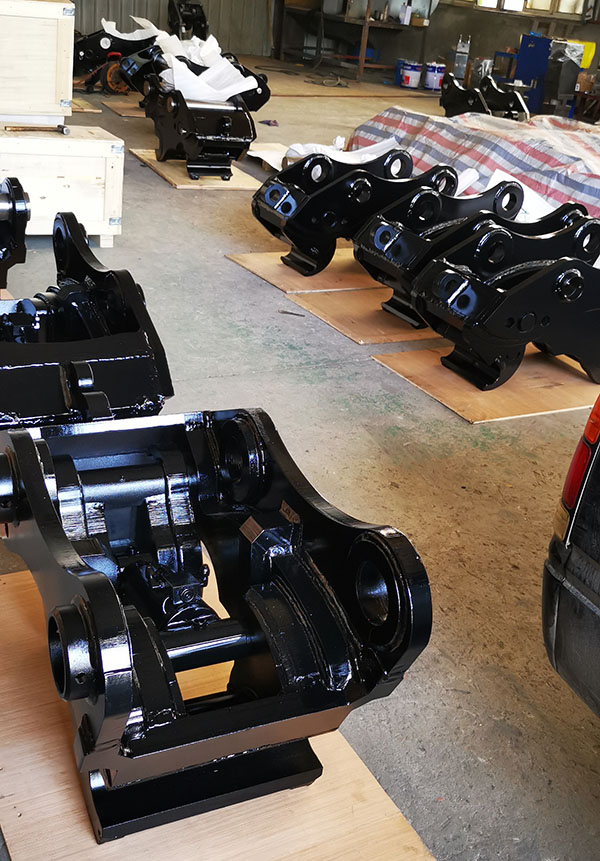

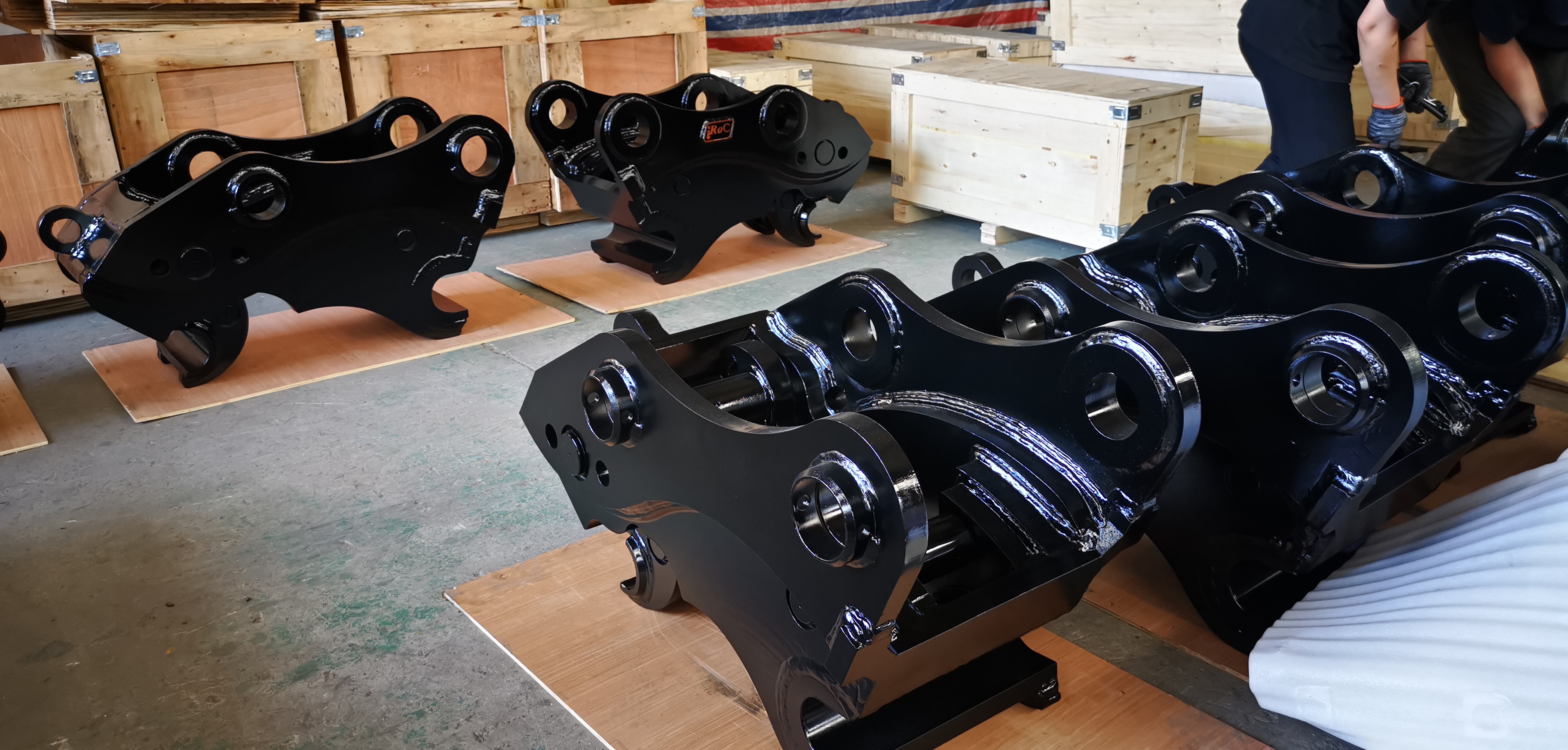

quick coupler

Features

? Tilting quick hitch can solve the need to move the entire excavator to complete the job requirements and improve work efficiency by simply tilting.

? At the same time replace the more attachments, it can also easily inclined at different angles to complete the job.

? The overall design is compact, lightweight, long service life.

? Automatic installation of security systems, full protection job security.

項(xiàng)目/型號 Item/Model	單位 Unit	TK Mini	TK 45	TK50/55	TK60/65	TK70/80	TK90	TK100/110
適配挖掘機(jī) Carrier	Ton	1.5~4	4~7	5~8	9~19	17~23	23~30	33~45
總長度L Total Length	Mm	388	534~545	600	765	924~944	983~1050	1006~1473
總高度H Total Height	Mm	246	307	310	388	492	574	558~610
總寬度W Total Width	Mm	175	258~263	270~280	353~436	449~483	543~568	606~663
軸中心距 Pin to Pin Center Distance	Mm	80~150	230~270	290~360	380~420	460~480	473~540	550~620
小臂開檔 Forearm Open Width	Mm	80~140	155~170	180~200	232~315	306~340	375~411	416~469
油缸伸縮距離 Retractable Distance of Oil Cylinder	Mm	170~206	205~275	340~450	340~486	256~390	413~590	520~590
上下軸之間距離 Top to Bottom Pin Distance	Mm	159	195	195	220	275	300	360
軸直徑 Pin Diameter	Mm	25~40	45~50	50~55	60~70	70~80	80~90	90~120
工作壓力 Operation Pressure	Kg/CM2	40~380	40~380	40~380	40~380	40~380	40~380	40~380
驅(qū)動油量 Required Oil Flow	L/Min	10~20	10~20	10~20	10~20	10~20	10~20	10~20
